MTK Archives · Nissan Fairlady Z Z33

Top Secret Z33

11 sections · 38 entries
Source: Hyper Rev Vol.101 Fairlady No.3

Power700 HP

EngineVQ35DE

TurboHKS GT-RS twin

Top Secret engineered this Nissan Fairlady Z as a dedicated high-speed grand tourer designed to replicate the aerodynamic stability of a GT machine. Designed around the philosophy that aggressive styling stems directly from functional necessity, the build expands the chassis track width to deliver exceptional high-speed plantedness and reduced drag without sacrificing touring refinement.

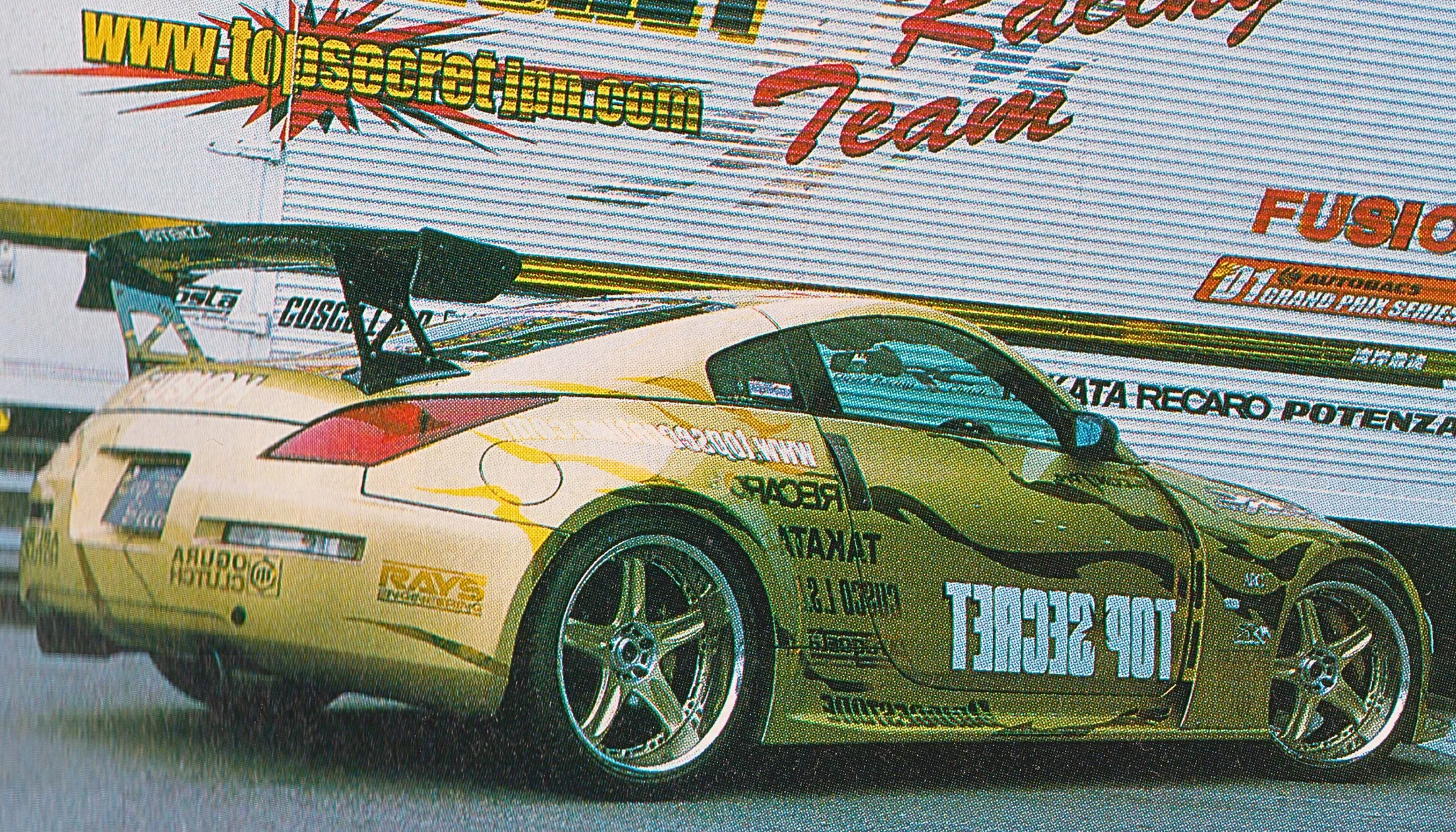

Car Gallery9 scans

Overview

Chassis Code	Z33
Drivetrain Layout	FR
Concept	A dedicated high-speed grand tourer engineered to replicate the aerodynamic stability of a GT machine.

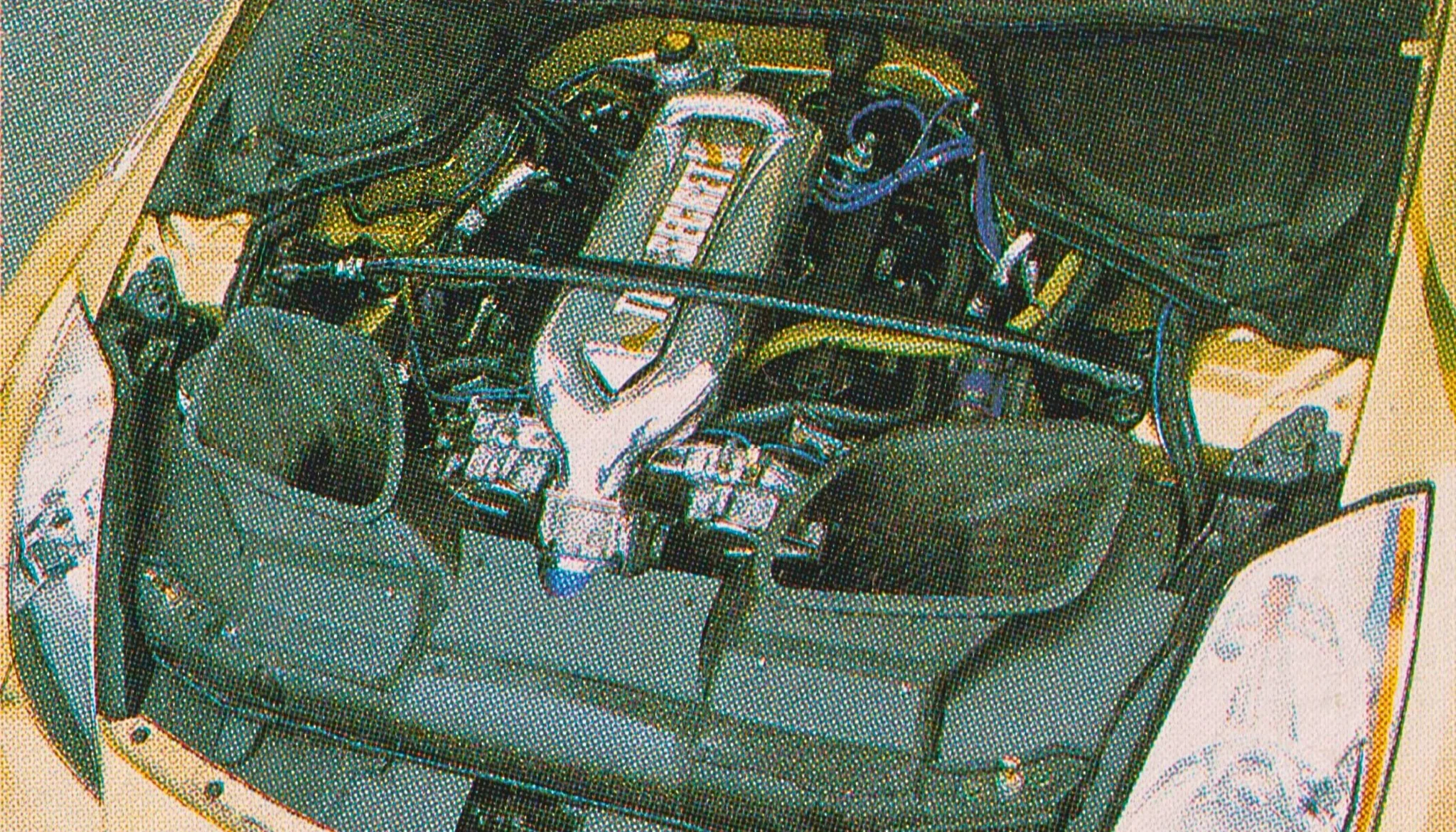

Engine

Engine Code	VQ35DE
Power	700 HP
Torque	834 Nm
Displacement	3498 cc
Pistons	JUN
Camshafts	TOMEI high-lift
Cylinder Head	Top Secret SPL
Intercooler	Top Secret one-off

Forced Induction

Turbo / Turbine	HKS GT-RS twin
Exhaust Manifold	Top Secret one-off

Exhaust

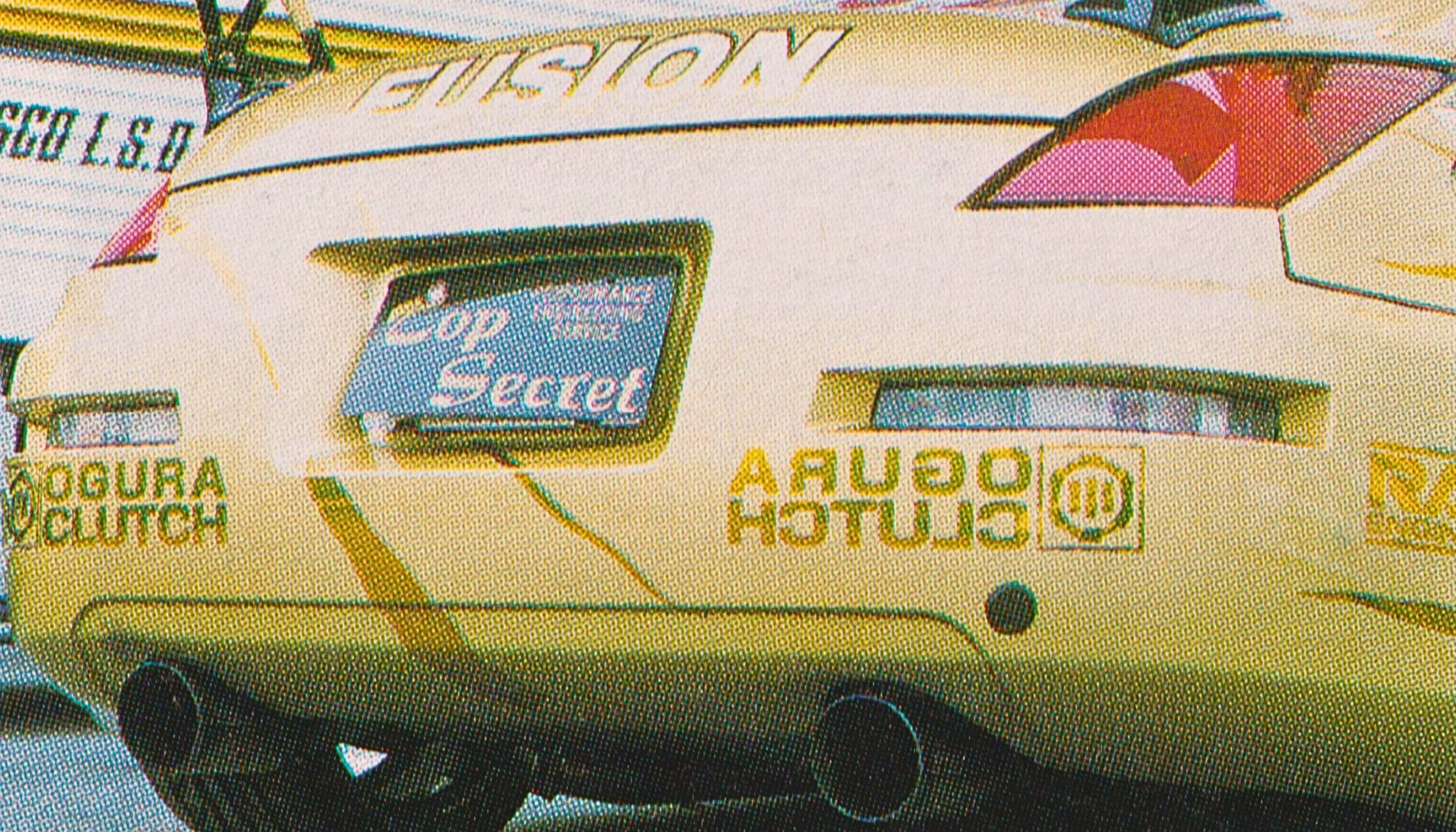

Exhaust / Muffler	Top Secret Titanium Pro Muffler
Piping	70 mm main pipe, dual 110 mm outlets

Cooling

Oil Cooler	TRUST

Drivetrain

Clutch	ORC twin-plate
Differential (Rear)	CUSCO

Suspension

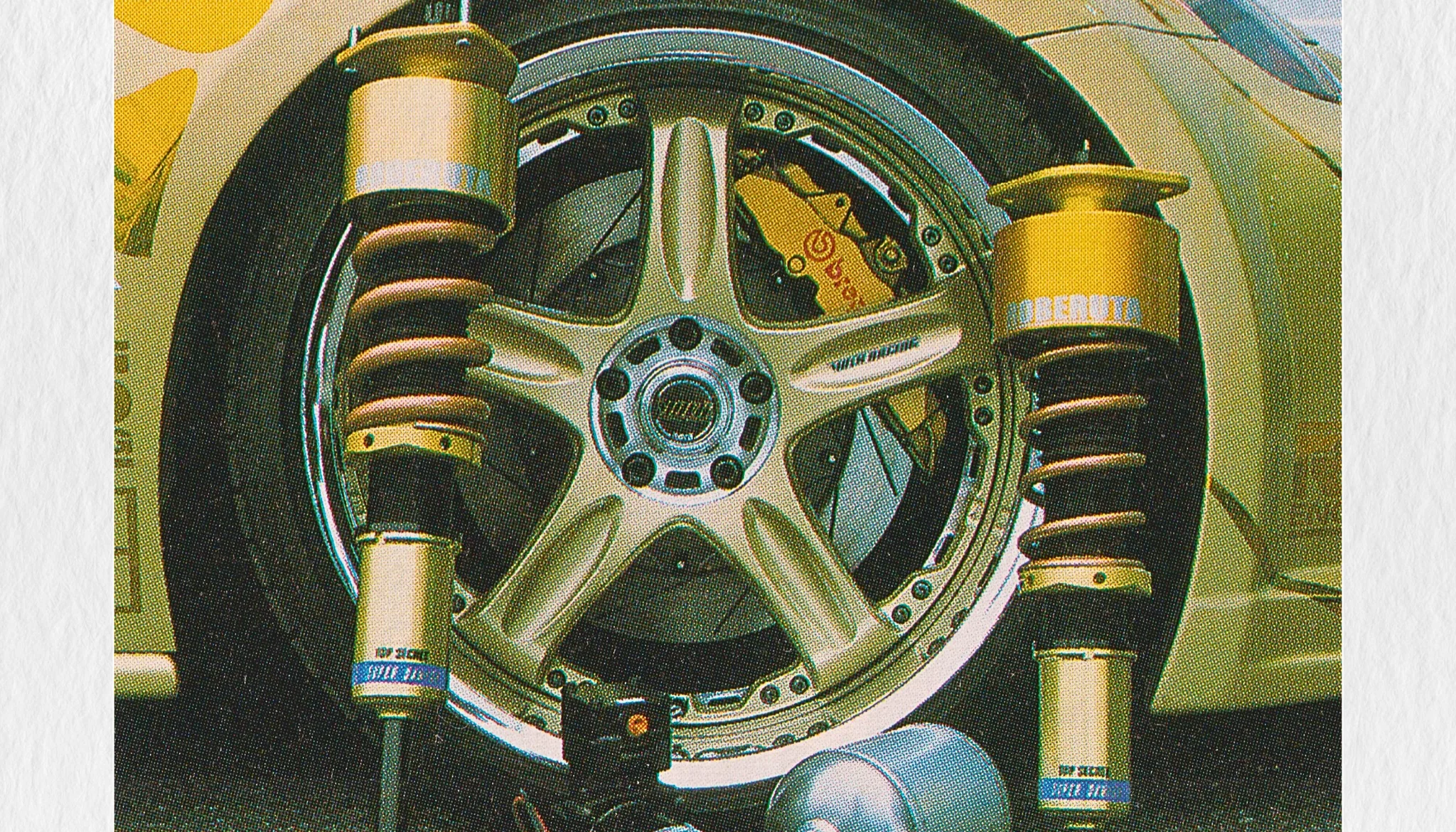

Dampers / Coilovers	Top Secret New Spec Super Dampers (Aragosta-based)
Springs	Swift
Suspension Notes	ROBERUTA CUP pneumatic system

Brakes

Calipers	Top Secret Brembo 8-piston front / F50 rear

Wheels & Tires

Wheels	RAYS GT-C
Wheel Size (Front)	20-inch
Wheel Size (Rear)	20-inch
Tires	Bridgestone POTENZA S-03
Tire Size (Front)	245/35R20
Tire Size (Rear)	285/30R20
Track Width	+50 mm per side

Exterior & Aero

Aero Kit	Top Secret Super G-Force

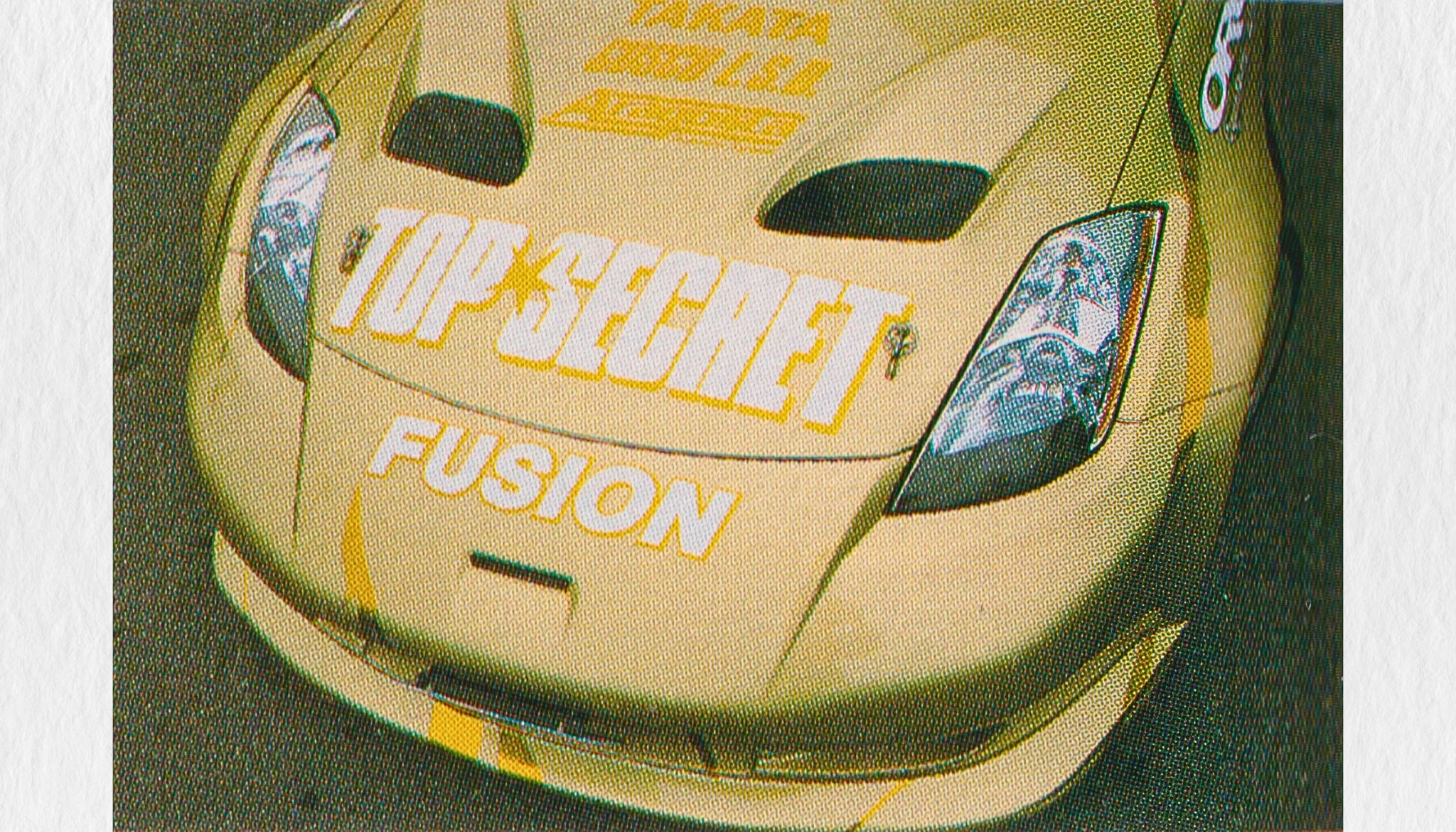

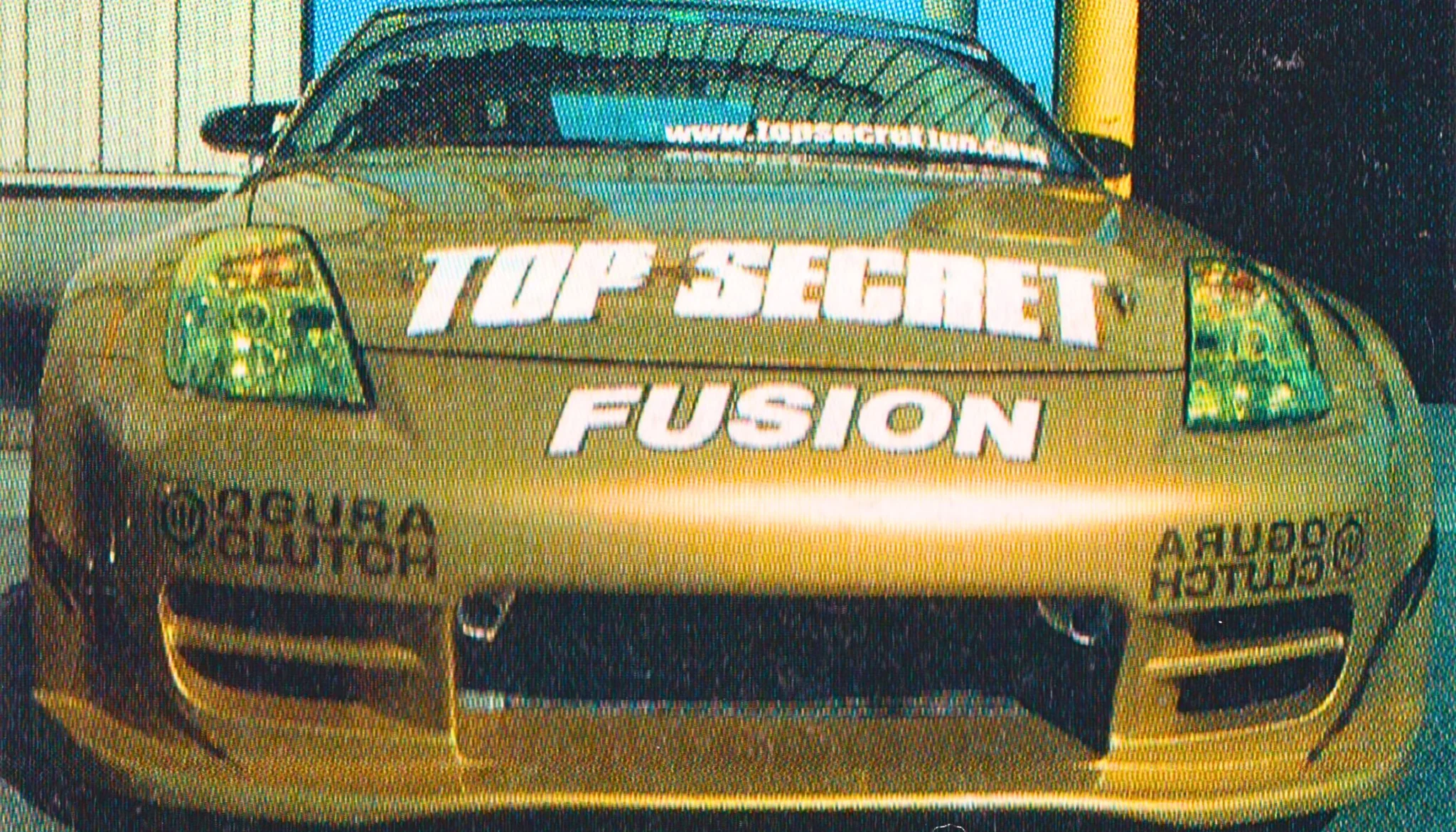

Front Bumper	Top Secret Super G-Force

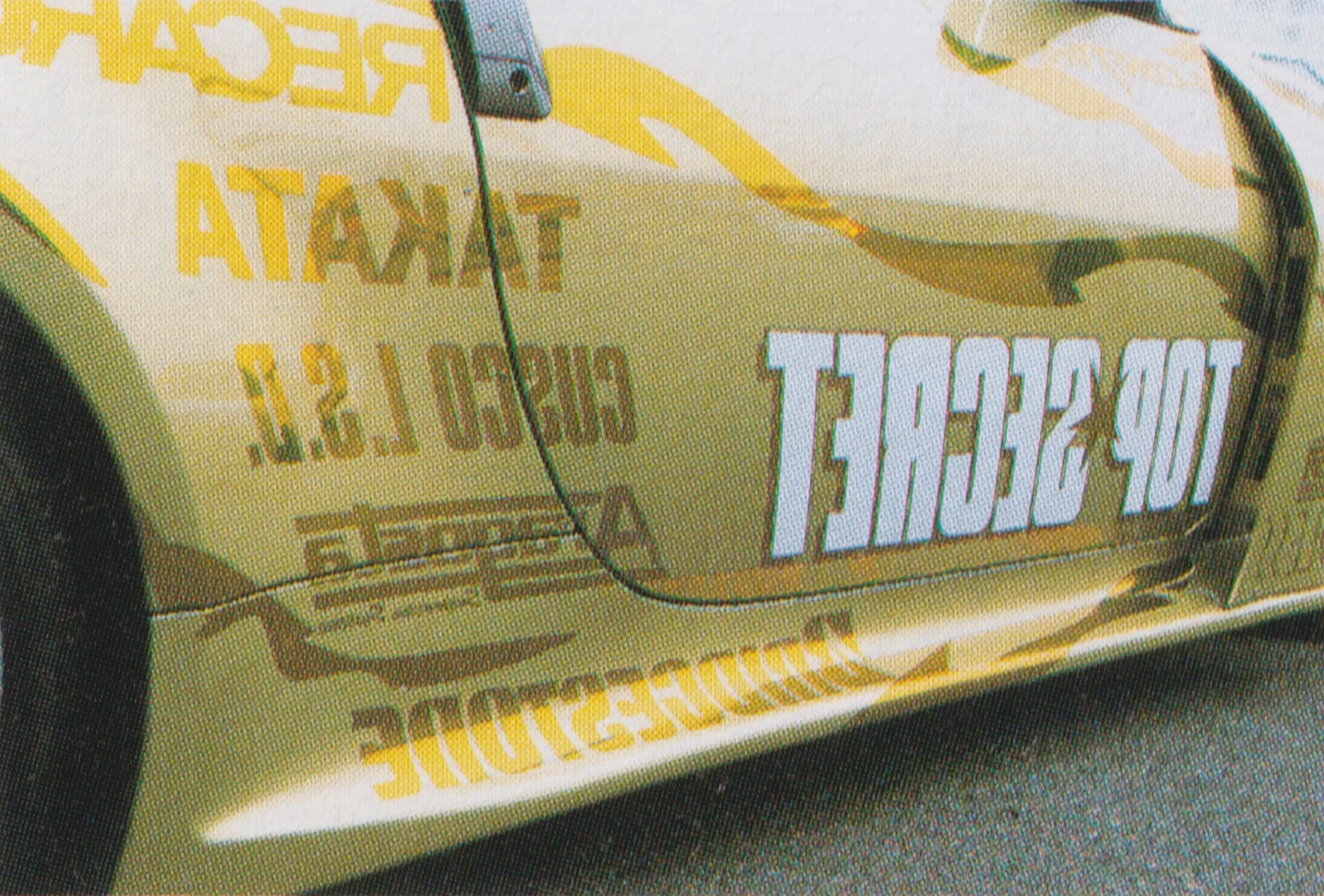

Side Steps	Top Secret Super G-Force

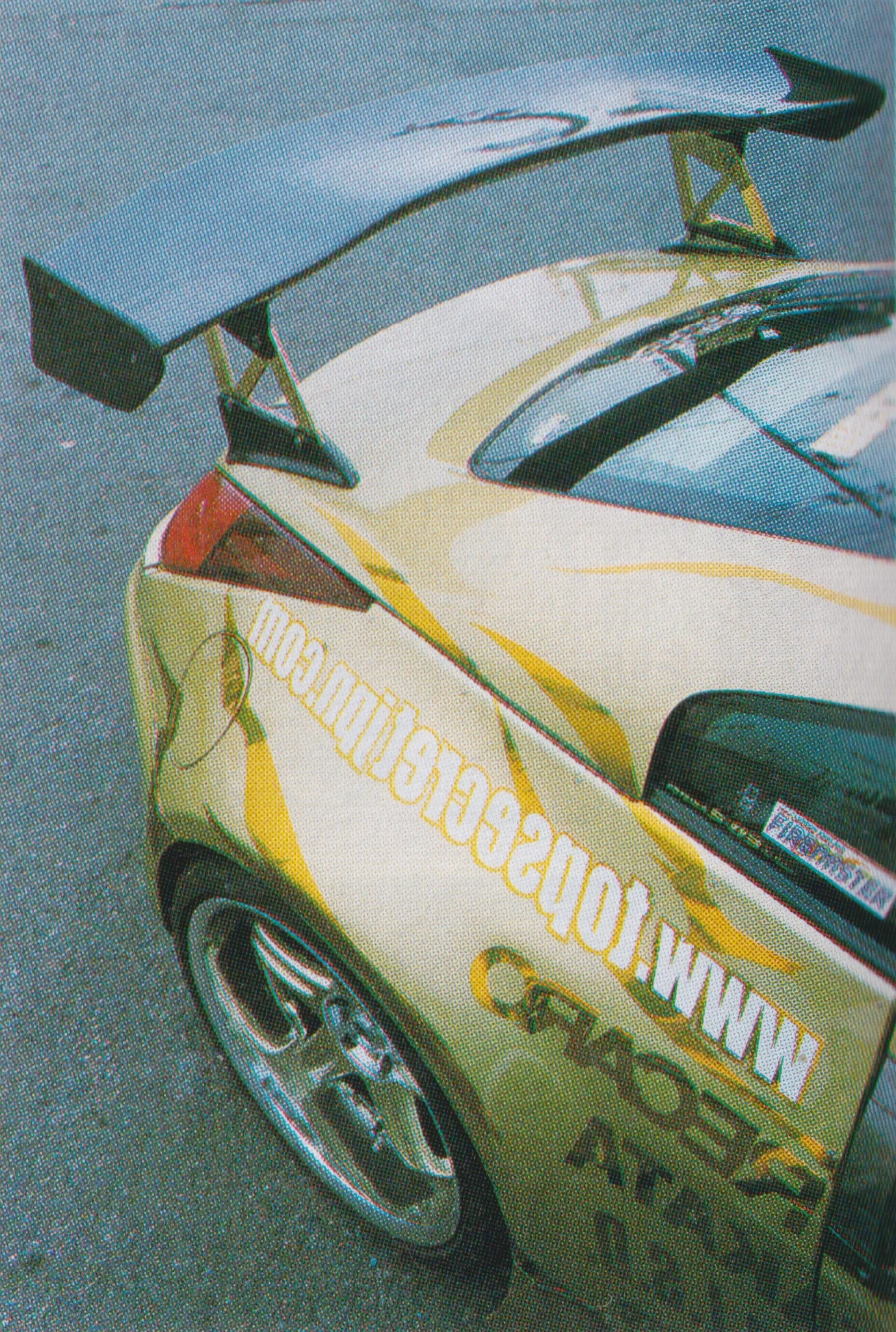

Wing / Spoiler	3D GT Wing II

Interior

Seats	RECARO WILD CAT
Harness	TAKATA 4-point

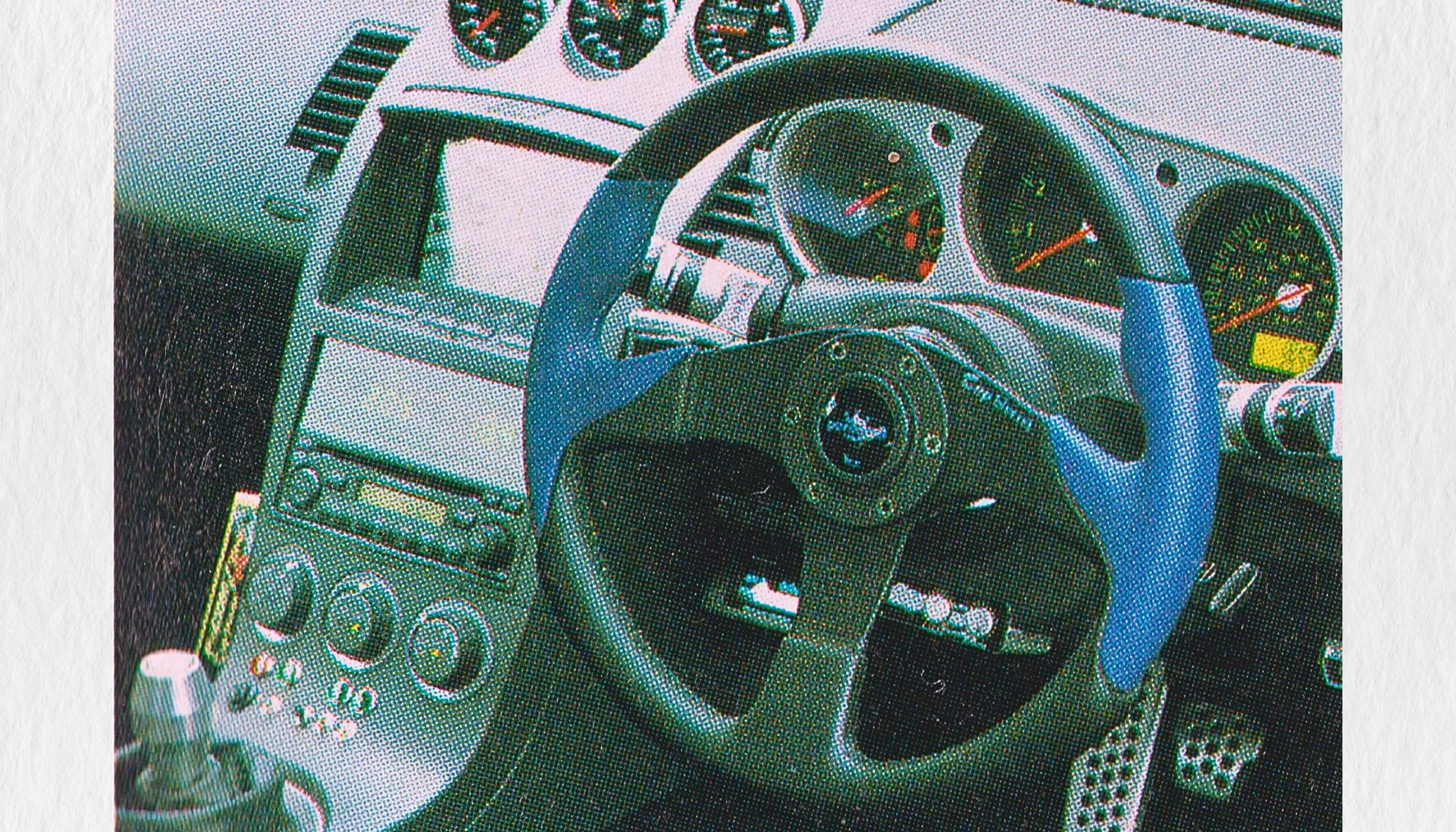

Steering Wheel	Top Secret Personal
Gauges / Meters	Defi
Data Logger	HKS Circuit Counter
