MTK Archives · Nissan Silvia S14
Weld Midship S14
Power450 HP
EngineSR20DET
TurboTD06-25G, 10…
Weld, a shop in Yokohama, rebuilds the S14 Silvia around a full midship layout, setting its SR20DET some 41 cm back behind the front axle for a 50:50 weight distribution. The intercooler lies flat and the radiator moves into the boot, fed by a duct drawing air from under the car, so the heavy components gather about the centre of the chassis. A one-off forward-opening hood and a windscreen that lifts keep the engine reachable. Taken out to 2.1 litres on 88 mm Z32 pistons and fed by a TD06-25G, it makes around 450 ps, and the shop built it to run time attack and drift as readily as it draws a crowd.
Car Gallery7 scans
Overview
| Chassis Code | S14 |
|---|---|
| Drivetrain Layout | FR |
| Shop Location | Yokohama, Kanagawa |
| Weight Distribution | 50:50 |
| Concept | Street-style Silvia converted to a full midship layout |
Engine
| Engine Code | SR20DET |
|---|---|
| Power | 450 HP |
| Boost | 1.4 bar |
| Displacement | 2100 cc |
| Pistons | Z32 OEM, 88 mm |
| Camshafts | HKS 256° IN & EX |
| Cam Sprockets | HKS adjustable cam pulleys |
| Cylinder Head | Modified combustion chambers, enlarged ports |

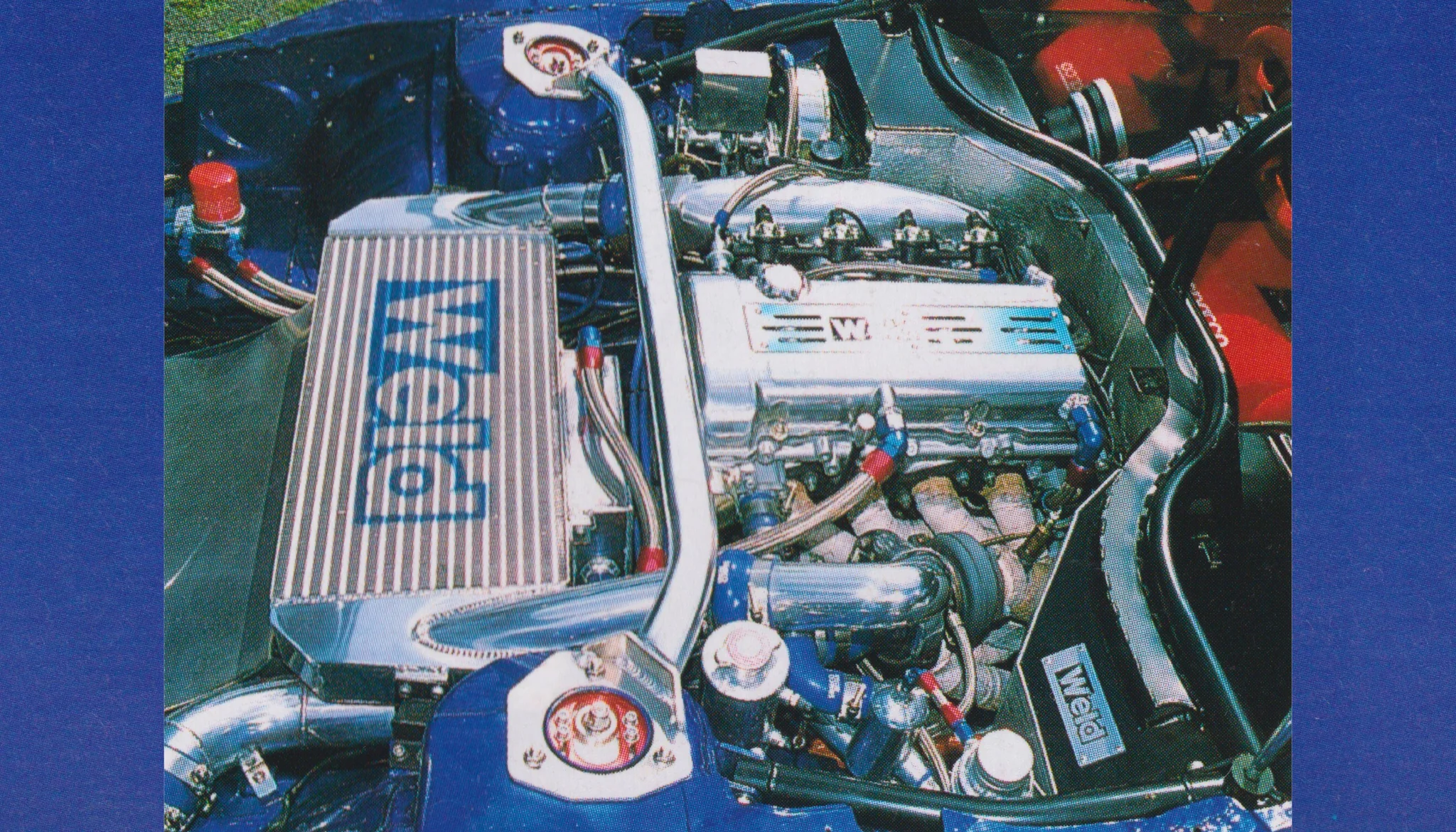

| Intercooler | Original two-layer, mounted horizontally |
Forced Induction
| Turbo / Turbine | TD06-25G, 10 cm2 turbine |
|---|---|
| Wastegate | Separate side-exit wastegate piping |
Fuel & Ignition
| Fuel Pump | BNR32 OEM |
|---|---|
| Surge / Collector Tank | Modified Trust |
Engine Management
| ECU | A'PEXi Power FC |
|---|
Exhaust

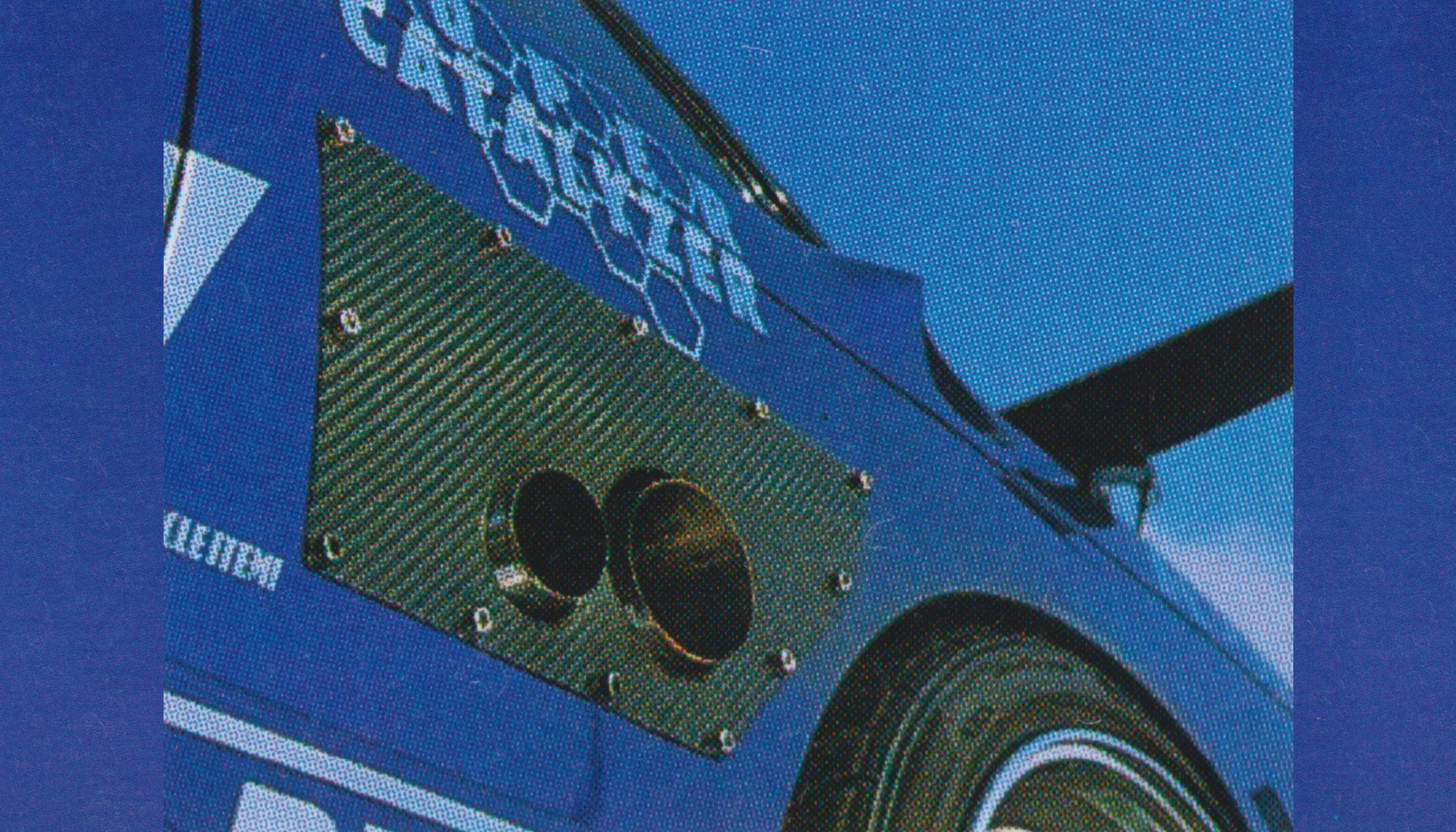

| Exhaust / Muffler | Side-exit muffler with A'PEXi metal catalyser |
|---|---|

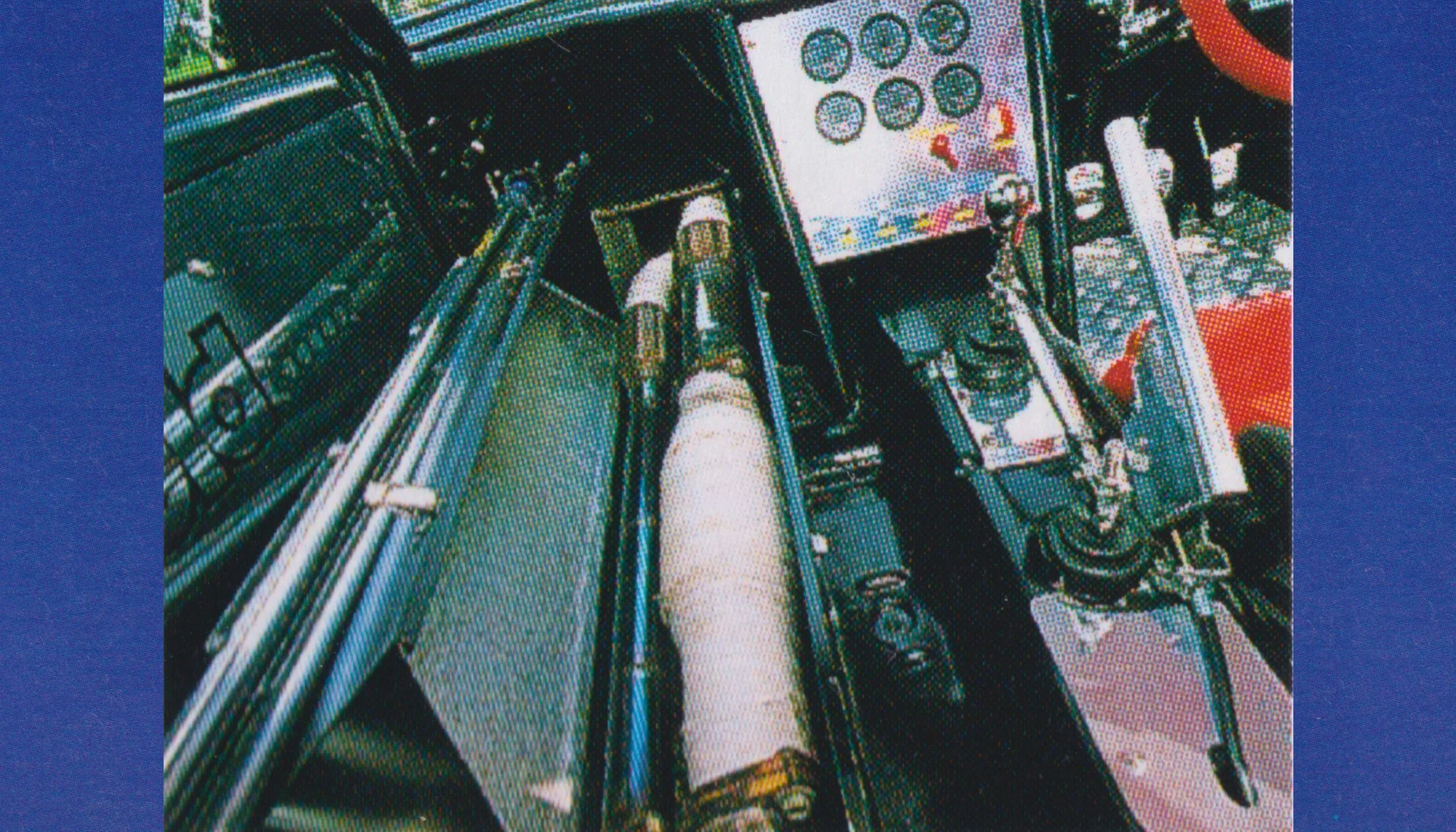

| Piping | Routed through the cabin on the passenger side |
Cooling
| Radiator | Aluminium two-layer, rear-mounted in the trunk; under-car duct intake, rear exit, electric fan |
|---|---|
| Oil Cooler | Trust 12-row |
Drivetrain
| Clutch | Original metal clutch |
|---|---|
| Transmission | RB26 5-speed |
| Differential (Rear) | NISMO SSS LSD |
Suspension
| Dampers / Coilovers | A'PEXi N1 Damper Pro |
|---|---|

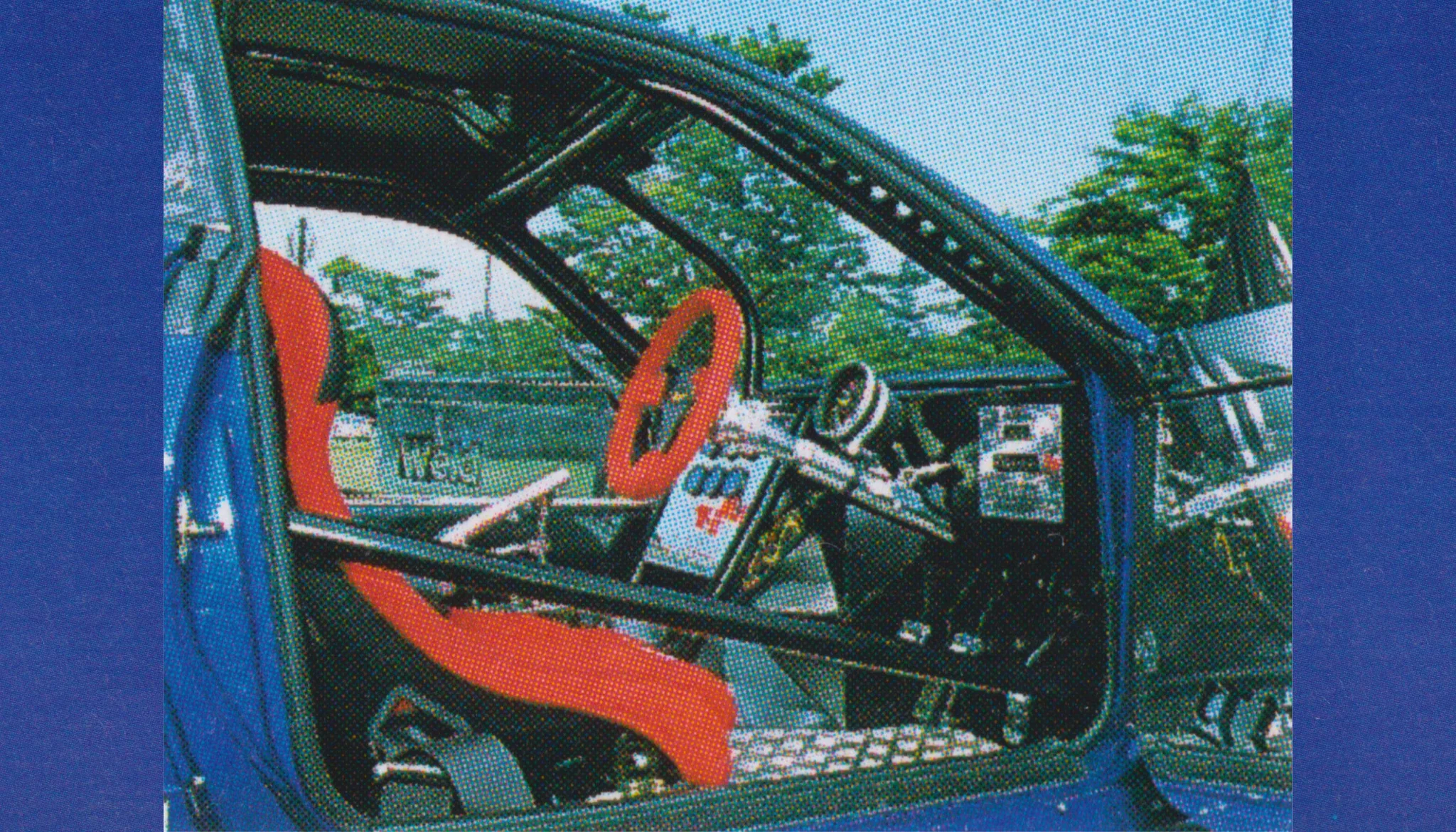

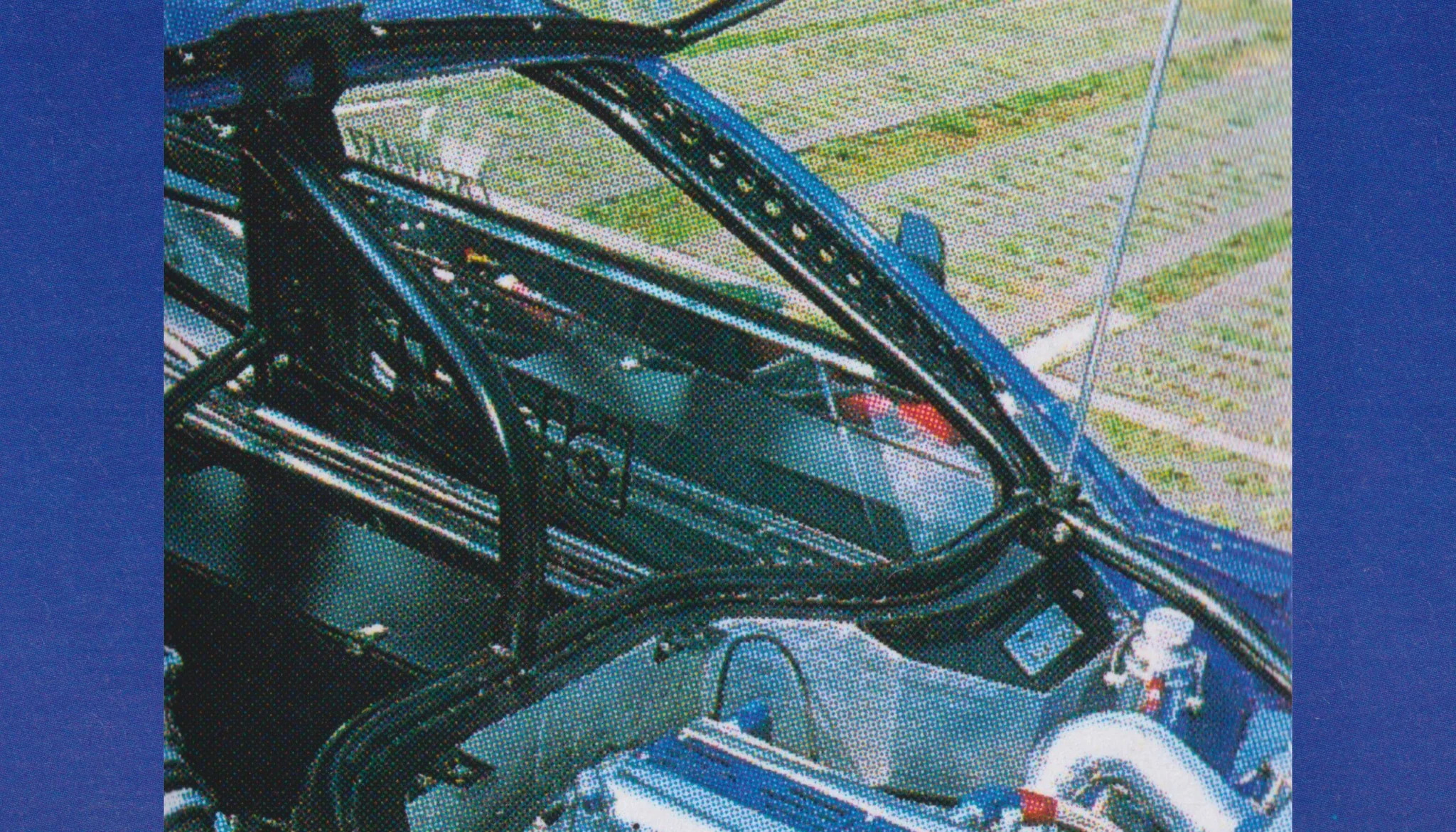

| Chassis Bracing | Pipe-frame bulkhead around the engine, panelled in sheet metal, with a centre roll bar |
Brakes
| Calipers | ER34 OEM, front |
|---|---|
| Pads | Original Type M |
Wheels & Tires
| Wheels | Work Meister S1 |
|---|---|
| Wheel Size (Front) | 17" 9J ET18 |
| Wheel Size (Rear) | 18" 10J ET22 |
| Tires | Goodyear RevSpec |
| Tire Size (Front) | 235/40R17 |
| Tire Size (Rear) | 265/35R18 |
Chassis & Rigidity
| Roll Cage | 20-point |
|---|---|
| Reinforcement | Reinforced rear subframe |
Exterior & Aero
| Fenders | OEM, welded to the hood |
|---|---|

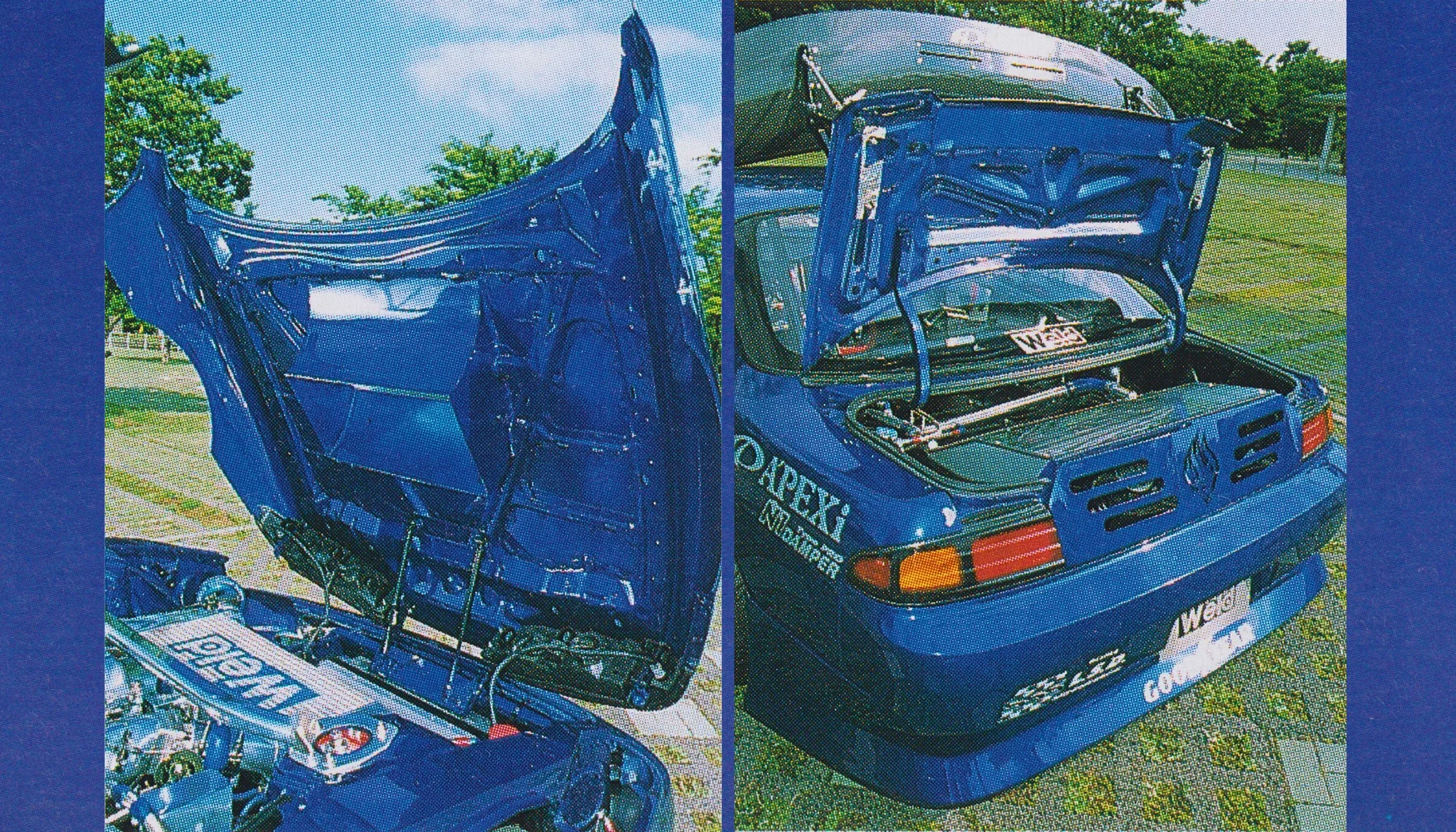

| Bonnet / Hood | One-off forward-opening hood, OEM panel |
| Windows | Acrylic front windshield, opens upward |

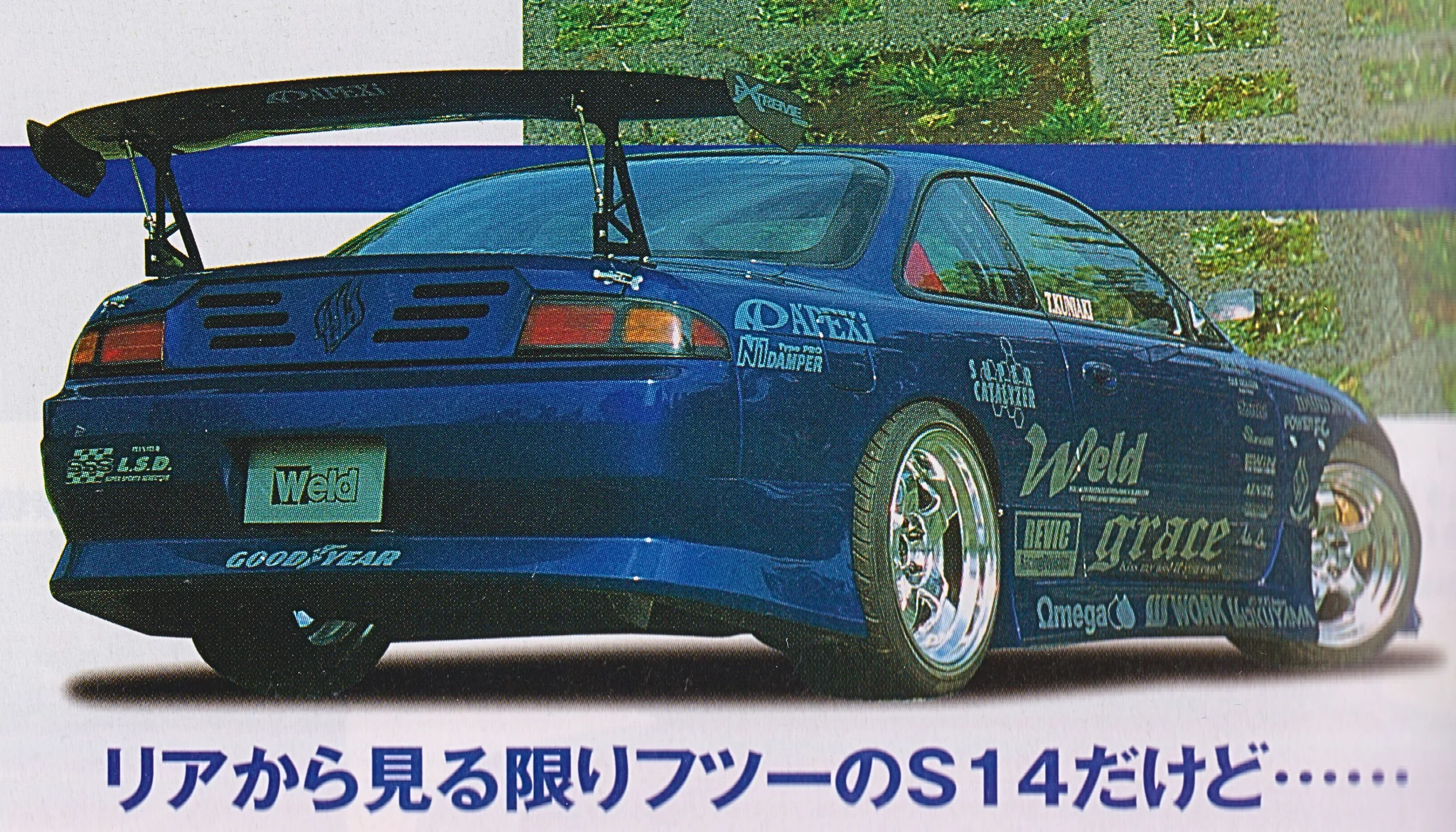

| Exterior Notes | Trunk-lid slits and rear body openings evacuate radiator air; side ducting vents muffler heat |
Interior
| Steering Wheel | Adjustable position, vertical and horizontal |
|---|---|
| Interior Notes | Custom dashboard |
Other
| Engine setback | 410 mm behind the front axle |
|---|---|
| Shift knob | Fore-aft adjustable on a turnbuckle |
